Dual network interface 16x16 Channel Input Output Dante Network Audio Adapter
Main Features:
• DB series products are audio interface devices based on Dante international general protocol, which can input analog audio signals, convert them into digital audio signals, and route them to any Dante audio transmission network devices through Dante protocol, achieving features such as high quality, long distance, low delay, strong anti-interference ability, and convenient networking.In addition.
• It supports access to any Dante network digital audio, conversion to analog audio signal output, and access to traditional analog audio devices such as mixing consoles, power amplifiers, and processors.
• The device adopts high quality AD/DA signal conversion chip, provides 48V phantom power supply, and can access higher quality capacitor mic

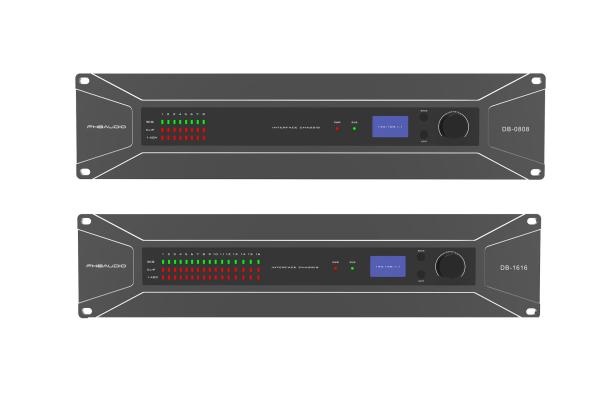

• Channel:DB-0808 (8 analog inputs, 8 analog outputs) + 8 × 8 Dante;DB-1616 (16 analog input, 16 analog output)+ 16 × 16 Dante
 |
| Model No. | DB-0808,DB-1616 | | Channel | DB-0808 (8 analog inputs, 8 analog outputs) + 8 × 8 Dante DB-1616 (16 analog input, 16 analog output)+ 16 × 16 Dante | | Sensitivity | 0dB ~ 51dB,3dB/level | | Digitalizing bit | 24bit | | Sampling rate | 48k | | Frequency response (20~20KHz) | 20HZ ~ 20K HZ ,±0.5dB | | Maximum input level (balanced) | 20dBu | | Maximum output level (balanced) | 20dBu | | Floor Noise | -90dBu | | THD+N | ＜0.002% @ 4dBu | | Analog to Digital dynamic range | 118dB | | Digital to Analog dynamic range | 123dB | | Input to output dynamic range | 110dB | | Input impedance (balanced) | 20KΩ | | Output impedance (balanced) | 100Ω | | Input common mode rejection | 80dB @60Hz | | Channel isolation @1kHz | 100dB | | Phantom power | 48V | | Working Temperature | -10℃-40℃ | | Working Power | DC 12V | | Power Consumption | 26W | | Size | 486mm×156mm×110mm | |
Using Description
1.Connect the analog signal source to the input port of the device and configure routes using the third-party control software Dante Controller.(See below for details)
Advantages:
1.Innovative
FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.
2.Wide & Deep Products Line
We provide over 200 audio & Video products, as well as a series of Dante products, such as Digital Signal processor, Digital microphone system,Dante signal processor, 2CH Dante AVUO,2CH Dante wall plate,4CH Dante box., Dante Bluetooth panel, Dante microphone, and Dante speaker etc…
Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.
3.Professional & Fast Service,
24 hours online services to provide suggestions and solutions for customer.
After-Sales Technical Support /Product Maintenance
Wiring/Installation/Debugging Instruction
4.OEM/ODM Solutions
Professional System Designers to assist in product selection and system design to meet your specific needs.
